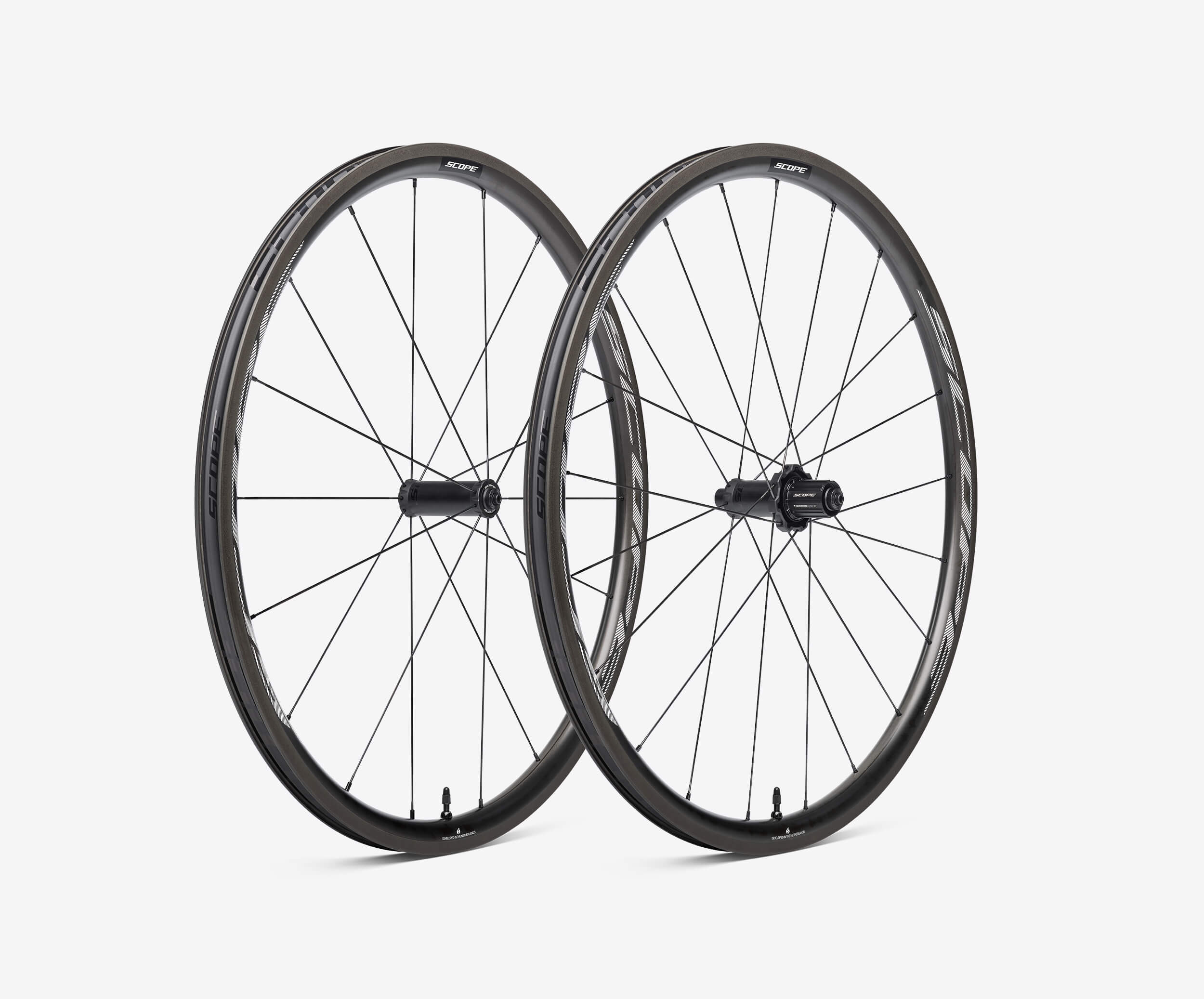

The Scope R3 is our lightest road wheelset, weighing in at just 1.440 grams for the rim brake version and 1.477 grams for the disc brake version, respectively. Due to its light weight, the R3 accelerates and climbs very well, yet is also comfortable enough to tackle even the roughest cobbles. As the result of an extensive engineering process and the use of high-end materials, the R3 wheelset provides you with an undisputed competitive edge.
Optimized aerodynamics
Lightweight
Improved brake performance
Extreme durability
Improved stiffness
Tubeless ready
Front
Rear
Rim height
30 mm
30 mm
External rim width
26 mm
26 mm
Internal rim width
19 mm
19 mm
Weight Rim
629 grams
811 grams
Weight Disc
679 grams
798 grams
Hubs
Scope
Scope
Spoke count Rim
18
21
Spoke count Disc
21
24
Axle system Rim
QR 100 mm
QR 130 mm
Axle system Disc
TA 100 x 12mm
TA 142 x 12 mm*
Our hubs are compatible with a wide variety of axle configurations. You can adapt your Scope wheels to nearly any frame of your choice by switching the end caps.
Axle
Front
Rear
Quick release
100 mm
135 mm
Through axle
100 x 10 mm
135 x 10 mm
Through axle
100 x 12 mm
135 x 12 mm
Through axle
100 x 15 mm
142 x 12 mm
The following parts are included with the R3 carbon wheelset.
1 pair of Scope quick releases
1 set of Scope carbon brake pads
10spd spacer ring (Shimano free hub)
Product registration card
1 pair of tubeless valves (pre-installed)
Tubeless rim tape (pre-installed)
All Scope wheelsets are developed as a system. The hubs feature a characteristic wide flange distance and as such allow for an equal spoke tension. Combined with our road specific wide full-carbon rims the R3 offers a very high lateral stiffness, to minimize power loss and guarantee predictability and efficiency.
The rim shape of the R3 is based on the findings of iteratively used computational fluid dynamics and efficiently reduces drag and negative crosswind influences. Tests have shown that the R3 outperforms the competition from other premium wheel brands while setting a new performance benchmark in its category.
The tire bed of the R3 is optimized for tubeless tires and offers an internal rim width of 19 mm. The wider rim allows for an increased diameter of the mounted tire. As a result, a 25 mm tire will have a diameter of 26 mm. Additionally, the tire will perfectly sit on the inner sidewalls of the rim.
The Scope R3c, our rim brake version of the R3 wheelset, has a special braking surface which works best in combination with our Scope brake pads. The brake pads are developed in house and offer a powerful yet linear braking behavior. Even in rainy conditions or the most challenging descents you’ll be able to effortlessly dose your riding speed.
| Type | Rim, Disc |
|---|---|
| Decal Color | Black, White |
| . | Custom |
| Body Type | Shim, Campa |
| CeramicSpeed | No, Yes |
